Ø High voltage input, 176~264Vac
Ø High Efficiency, long life and High reliability
Ø Output protections: SCP/OVP/OLP/OPP
Ø Wide operating ambient temperature (-25℃~65℃)
Ø All using 105℃ long life electrolytic capacitors.
Ø 100% full load burn-in test
Ø 2 years warranty
Ø Isolated Dual Outputs

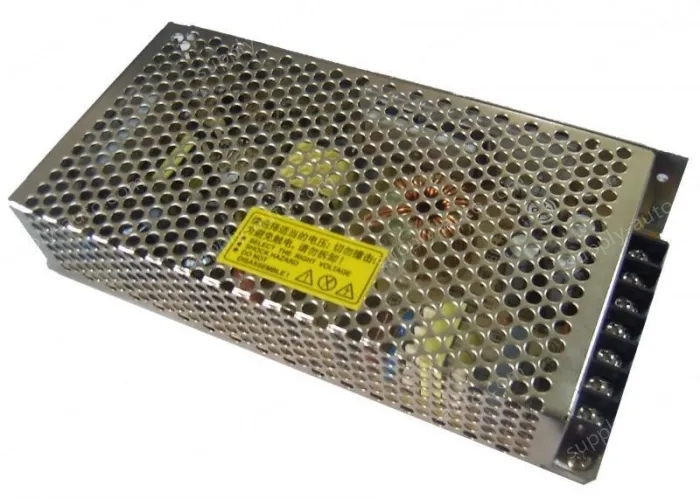

MODEL | CMG-H150D24G+12-M | ||
OUTPUT | DC Output | V1 | 24V |
V2 | 12V | ||
Rated Current | V1 | 6A | |
V2 | 5A | ||
Current Range Note 3 | V1 | 0.5~5.0A(5.0Ais recommended) | |
V2 | 0.3~3.0A(3.0Ais recommended) | ||
Ripple and Noise Note4 0~65℃ | V1 | 240mV | |
V2 | 120mV | ||
Ripple and Noise -25~0℃ | V1 | 480mV | |
V2 | 240mV | ||
Voltage ADJ. Range | 21.6~26.4V | ||
Voltage Accuracy | V1 | ±1.0% | |
V2 | ±10.0% | ||
Line Regulation | V1 | ±0.5% | |
V2 | ±1.0% | ||
Load Regulation | V1 | ±3.0% | |
V2 | ±10.0% | ||
Set-up Time | ＜1.5S (220Vac input, V1 @ 5A, V2 @ 3.0A) | ||
Hold up Time | ＞20mS(220Vac input, V1 @ 5A, V2 @ 3.0A) | ||
Temperature Coefficient | ±0.03%/℃ | ||
Overshoot and Undershoot | <5.0% | ||
INPUT | Voltage Range | 176Vac~264Vac | |
Frequency Range | 47Hz--63Hz | ||
Efficiency ( Typical) | ≥80% (220Vac input, V1 @5A, Picks for you Vgate ICAR3 Black Vgate ICAR3 ELM327 8973 reviews 0 sold ★ 5.0 OBD2 ELM327 Bluetooth Car Detector 1562 reviews 0 sold ★ 5.0 EX-14A 3255 reviews 0 sold ★ 5.0 Linear bearing with flange, medium，LHFCD8 1648 reviews 0 sold ★ 5.0 BK100 Diagnosis instrument 2686 reviews 0 sold ★ 5.0 6AV3688-3EH47-0AX0Button type panel 7135 reviews 0 sold ★ 5.0 KW218 Automotive Fault Diagnosis Instrument Engine Fault Reading Fault Code Query Playback Function Testing Tools 3151 reviews 0 sold ★ 5.0 KW470 Automotive Fault Diagnosis Instrument Engine Fault Reading Fault Code Query Playback Function Testing Tools 6355 reviews 0 sold ★ 5.0 BT380 Battery System Tester 5913 reviews 0 sold ★ 5.0 FZ-11P 2322 reviews 0 sold ★ 5.0 EQ-34-PN 9242 reviews 0 sold ★ 5.0 Pin Cylinders CJP Series CJPB16-15Z-B 8689 reviews 0 sold ★ 5.0 Subscribe | ||
