      3550Mbps AX3600 Quad-Band Gigabit Wi-Fi 6 AP
      • Next-generation Wi-Fi 6 (802.11ax) technology
      • 11AX dual-band concurrency, four radios are connected at the same time, and the maximum wireless rate can reach 3550Mbps, which is double the number of clients connected to ordinary dual-band APs
      • Professional metamaterial antenna, high-level isolation, improve the signal quality of the coverage area
      • Spectrum navigation guides dual-band clients to connect to the 5 GHz band preferentially, so that the load of the 2.4 GHz and 5 GHz frequency bands is more balanced and network performance is ensured
      • Fat and thin are integrated, and different working modes are selected in different environments
      • FIT mode supports intelligent roaming technology
      • The wireless transmit power is linearly adjustable, and the signal coverage is adjusted according to the demand
      • Simple ceiling installation, supporting 802.3at standard PoE and 12VDC power supply modes
      • Concealed port housing, beautiful wiring
      • Independent hardware protection circuit, which can automatically restore abnormal APs
      • Centralized management of TP-LINK commercial network cloud platform is supported

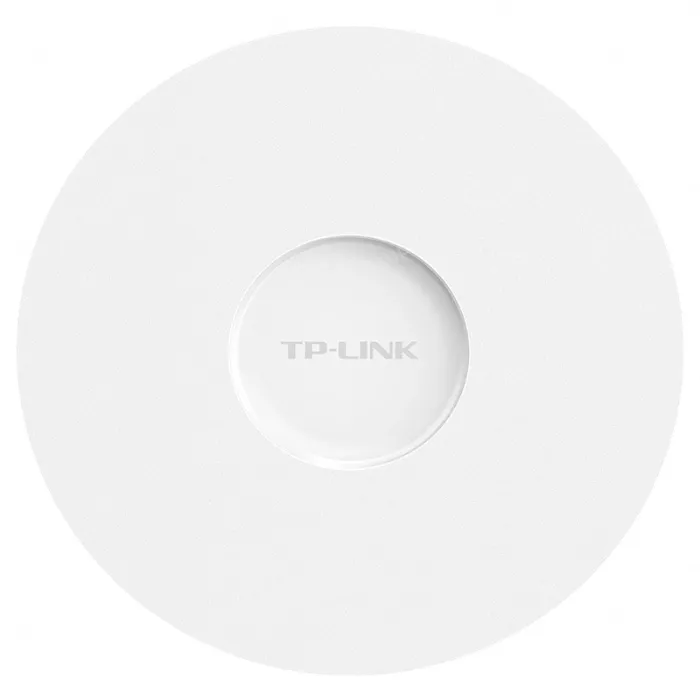

      3550Mbps AX3600 Quad-Band Gigabit Wi-Fi 6 AP

      Products

      Model
      • TL-NXAP3600-GC4-PD
      Name
      • AX3600 Quad-Band Gigabit Wi-Fi 6 High-Density Wireless Ceiling AP

      Hardware specifications

      Bare metal size (L×W×H)
      • Φ243×64mm(without mounting parts)
      Package dimensions (L×W×H)
      • 306×304×85mm
      Bare metal weight
      • 0.63kg (single unit, without accessories and packaging)
      The total weight of the whole piece
      • 1.16kg (single unit, including accessories and packaging)
      Interface
      • 1 x 10/100/1000Mbps rate adaptive Ethernet interface
      • 1 DC power connector
      Light
      • 1 system indicator
      Button
      • 1 RESET button
      • 1 x FAT/FIT mode toggle switch
      Power supply
      • IEEE 802.3at standard PoE power supply
      • DC power supply: 12V
      Maximum power consumption
      • The maximum power consumption of PoE power supply is 24.96W
      • The maximum power consumption of DC power supply is 27.6W
      Operating temperature
      • 0℃～40℃
      Operating humidity
      • 10%~90%RH non-condensing
      Storage temperature
      • -40℃～70℃
      Store humidity
      • 5%~90%RH non-condensing
      Antenna type
      • Built-in omnidirectional antenna
      Installation:
      • Ceiling mounting
      • Wall mounting

      Software Specifications

      Wireless capability
      • IEEE 802.11a/n/ac/ax, IEEE 802.11b/g/n/ax wireless protocols
      • The maximum wireless speed is 3550Mbps: 574+574Mbps in the 2.4GHz frequency band and 1201+1201Mbps in the 5GHz frequency band
      • Beamforming
      • 2×2 MU-MIMO
      • Maximum Merge Ratio (MRC)
      • Space-Time Block Code (STBC)
      • Cyclic Time-Delay/Cyclic Shift Diversity (CDD/CSD)
      • LDPC low-density parity
      • Maximum Likelihood Decoding (MLD)
      • Wireless Speed Up Parameter (ShortGI)
      • SSID Broadcast/Hide
      • Number of SSIDs: 2.4G: 8+8, 5G: 8+8
      • Chinese SSID, including GB2312 and UTF-8 encoding
      • Set up the host network and employee network
      • Channel bandwidth settings. 2.4G: 20M/40MHz/Auto; 5G: 20M/40M/80MHz/Automatic
      • Dynamic Channel Selection (DCS)
      • Wi-Fi multi-band in one
      • FIT mode spectrum navigation
      • Transmit power setting: Lv1-Lv10, 1dBm step
      • Isolation between wireless networks and within APs
      • Beacon time slot setting
      • Weak signal device rejection
      • Weak signal devices are not allowed to access
      • IEEE 802.11k/v protocol intelligent roaming
      • Automatic RF tuning
      • WMM: Priority-based data processing and forwarding
      • WDS function
      • Limit on the number of wireless clients
      Network characteristics
      • Rate and duplex mode auto-negotiation, automatic MDI/MDI-X
      • In FIT mode, CAPWAP interrupts service persistence
      • AC dual-link backup in FIT mode
      • LLDP link discovery
      • VLANs are assigned based on the SSID to which the user accesses
      • Manage VLANs
      • Obtain an IP address by using DHCP
      • Smart DHCP server
      Cybersecurity
      • FIT mode for portal authentication and MAC address authentication
      • WPA, WPA2, WPA-PSK, WPA2-PSK encryption
      • Whitelist management of devices that can be accessed
      • The SSID is bound to the Tag VLAN
      • FIT mode broadcast storm suppression
      • DHCP protection in FIT mode
      • ARP protection in FIT mode
      How it's managed
      • FIT mode wireless controller (AC) unified management
      • FAT mode is managed independently of web pages
      • Centralized management of the NMS commercial cloud platform
      • Centralized management of TP-LINK network management system
      System administration
      • Username/password management
      • Syslog viewing/downloading/sending servers
      • Manually set the synchronization time of the active-low NTP server
      • Back up the configuration
      • Import the configuration
      • Factory reset
      • Restart your device
      • Local online upgrade, local firmware upgrade, and cloud upgrade
      • Ping watchdog function, abnormal devices are automatically recovered
